Short dry cycle, reliable and stable

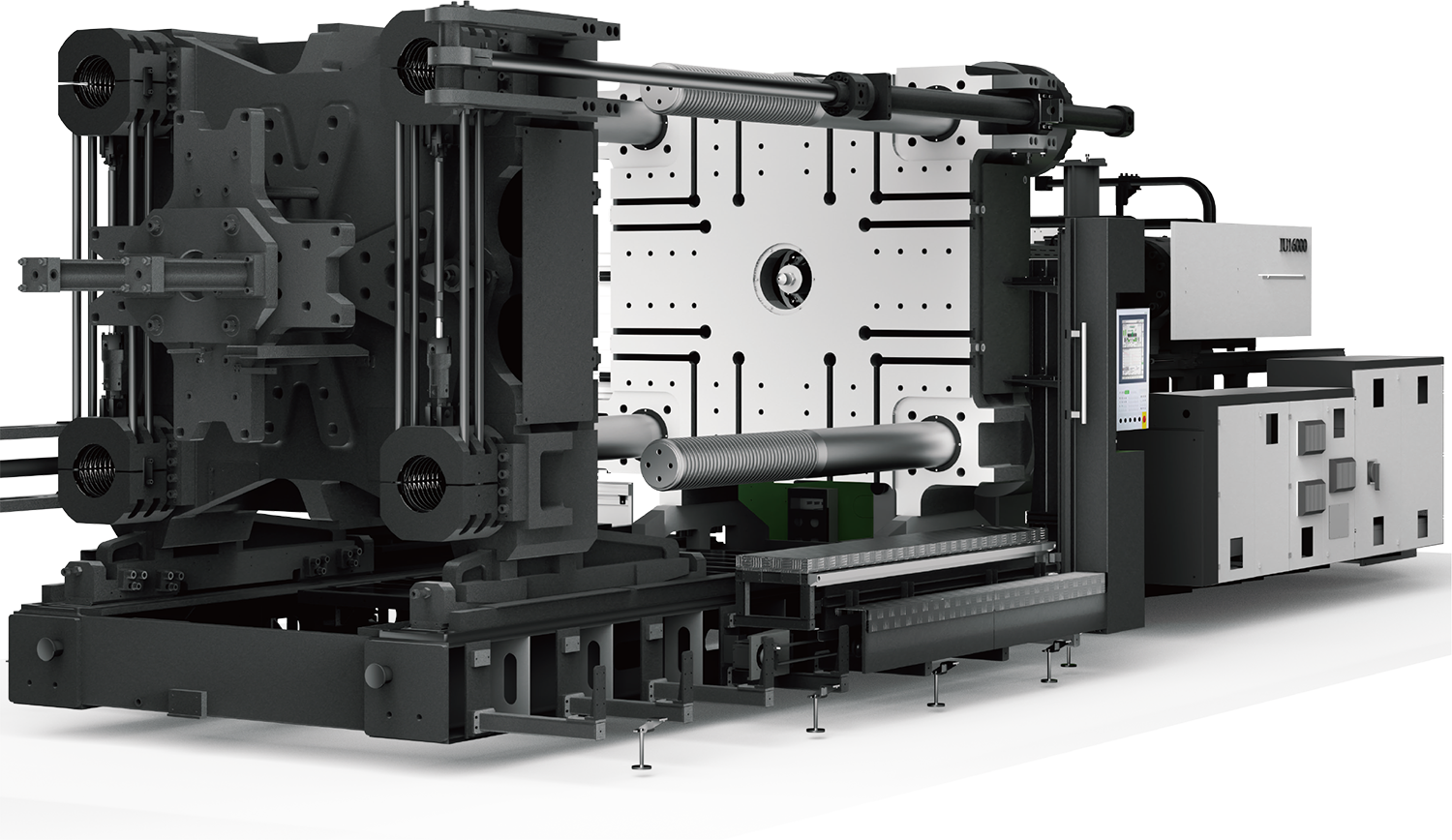

D1S series two-platen injection molding machine, based on high-rigidity clamping unit, precision guide device, synchronized lock nut mechanism, quick response hydraulic cylinders, fast control system and controlled by high-response dual proportional valve, delivers higher movement efficiency and control stability.

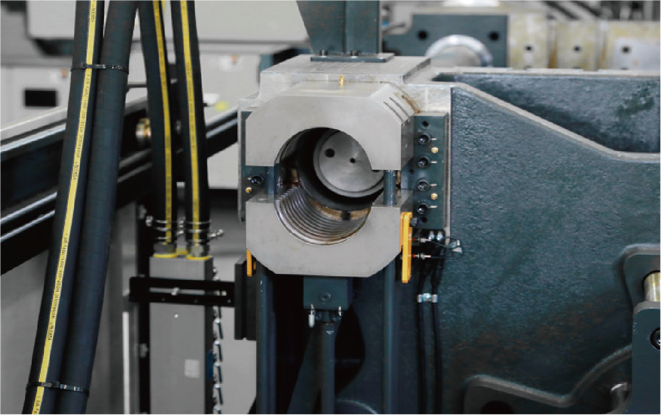

- Impact-proof synchronized lock nut mechanism
Impact-cushioning synchronized lock nut closing is fast and more reliable with low noise.

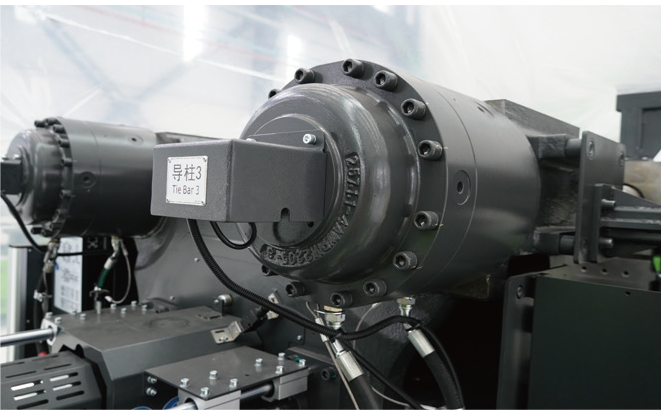

- Independent high-pressure cylinder
Mold opening under high pressure for standard.
Large opening force can solve molding problems of deep-cavity products or car lights which are strongly coated on mold or have difficulty in mold opening.

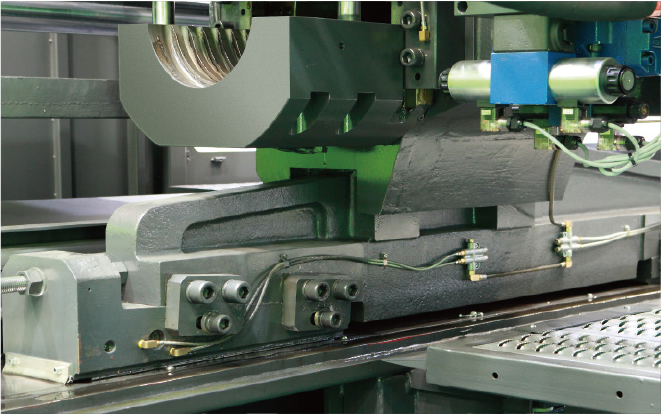

- Highly-rigid accurate guide device
Long movable platen supports and L-shape guide rails on machine frame facilitate high load-bearing, guide capacity, and anti-roll adjustment.

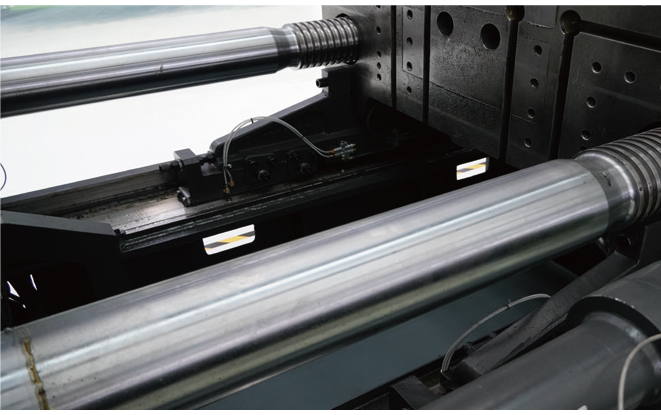

- Tie bars with uniform stress distribution
Tie bars are highly-rigid and resistant to wear and corrosion. Uniformity of stress distributed on tie bar threads is over 99% without unbalanced force, bringing durability
