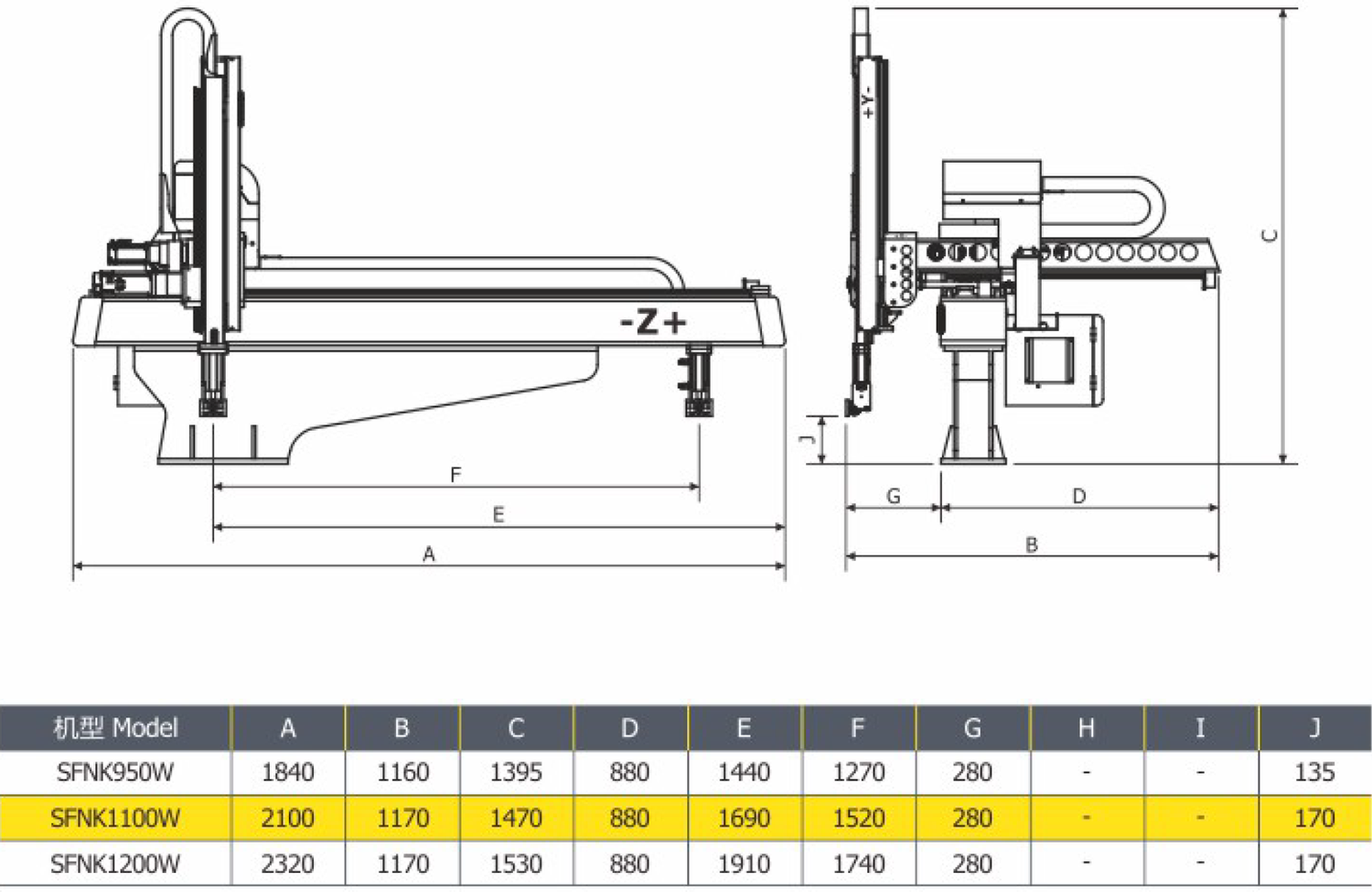

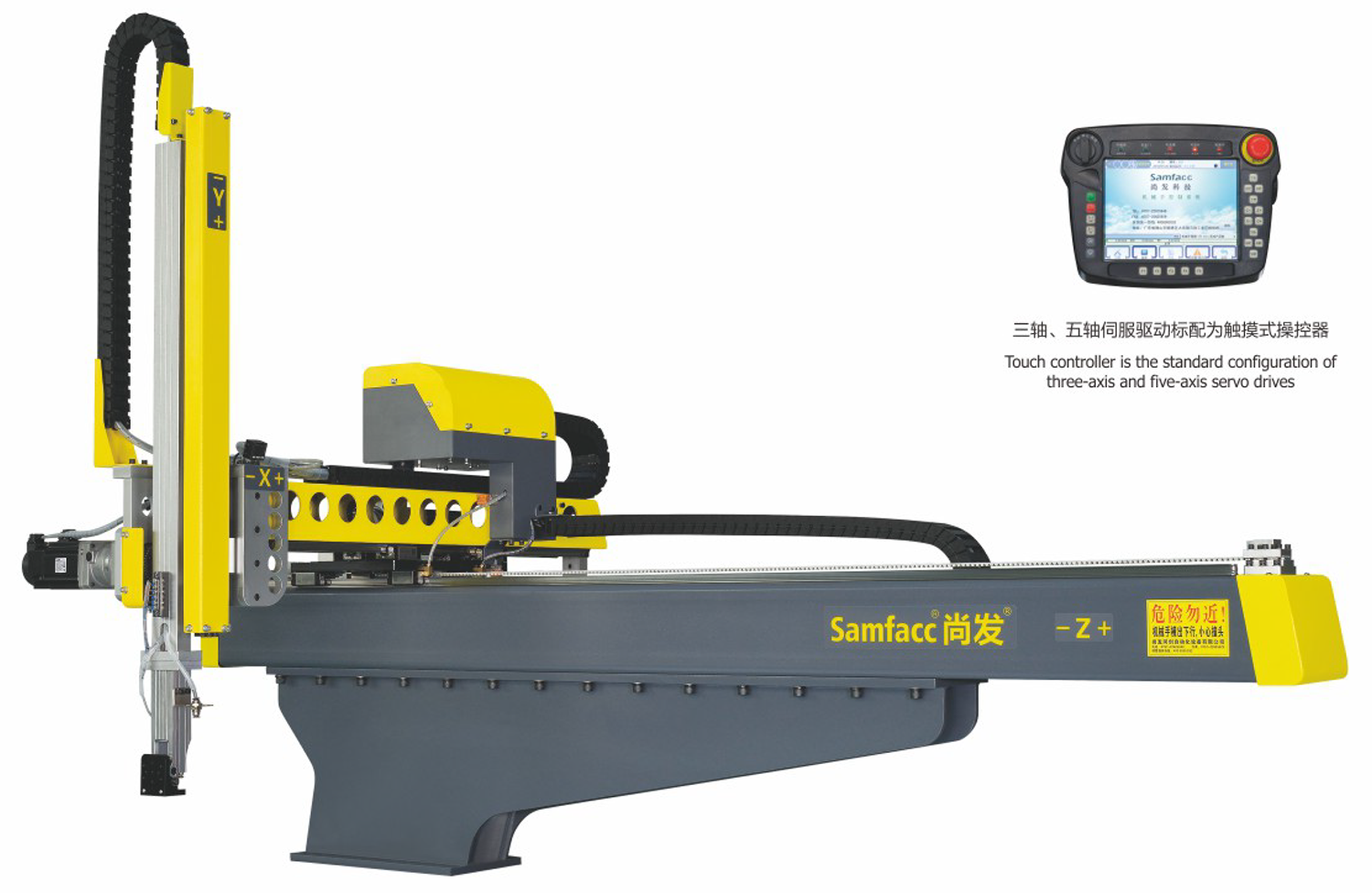

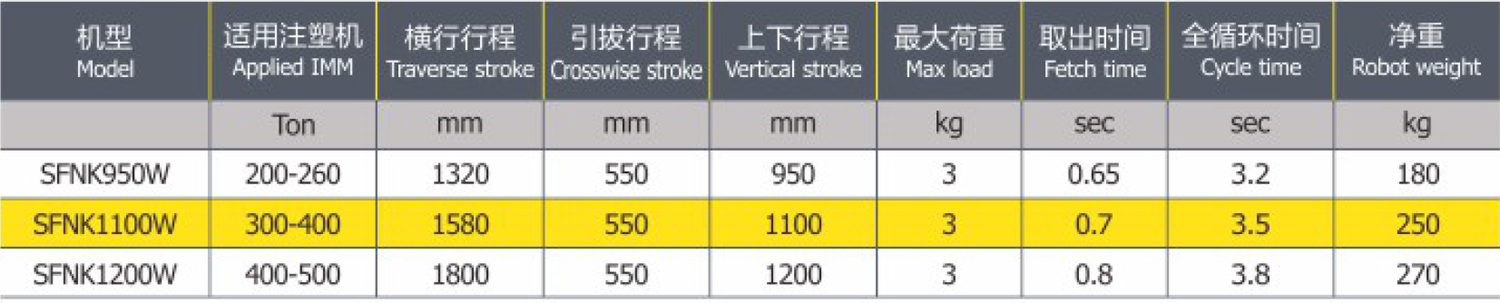

HIGH SPEED SFNK SERIES SFNK950W, SFNK1100W, SFNK1200W
SFNK series is open type, and standard configurations are telescopic type and three axes servo system. SFNK series robot is high speed type, mainly for some products which production cycle is between 3 to 6 seconds, such as disposable lunch boxes, knifes and forks thin wall products etc. The fastest cycle time of high speed SFNK series robot can reach 2.8s, while the fetch time is 0.6s.As the featured product of Samfacc, high speed SFNK series has great advantages in the industry.
FEATURES
100
100 sets of mold memory function
18
18 groups of standard programs
80
80 groups of user education programs
Open teaching mode, users can flexibly teach special action programs to meet the process needs of a variety of specific products.
REMARK
ISingle stage arm
WDouble stage arm
SSingle arm
DDouble arm
S3Three axes are driven by AC servo motors (Vertical main arm/Crosswise/traverse), vertical assistant arm/ crosswise cylinder driven.
S5Five axes are driven by AC servo motors (Vertical main arm/Crosswise/traverse), vertical assistant arm/ crosswise /traverse.

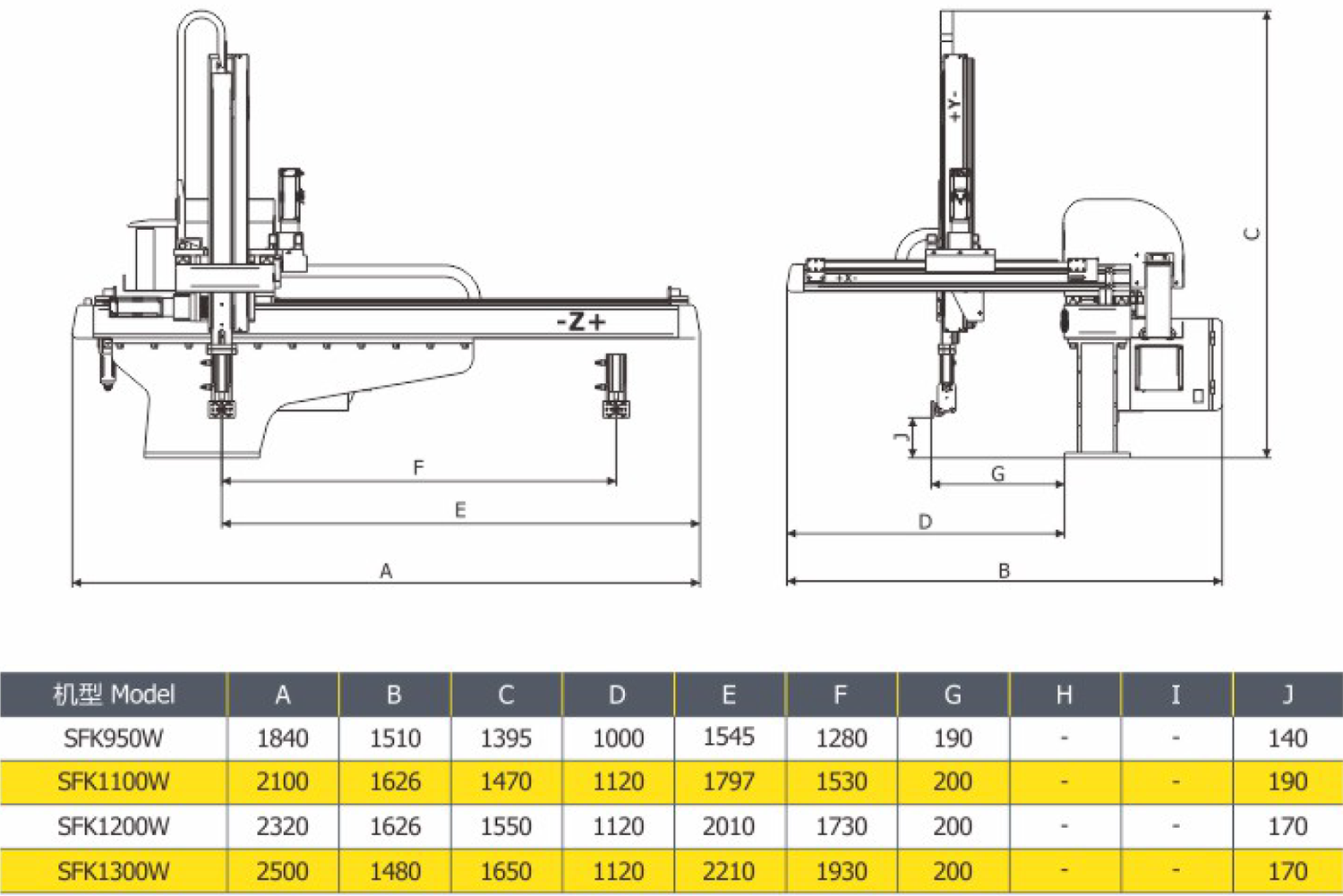

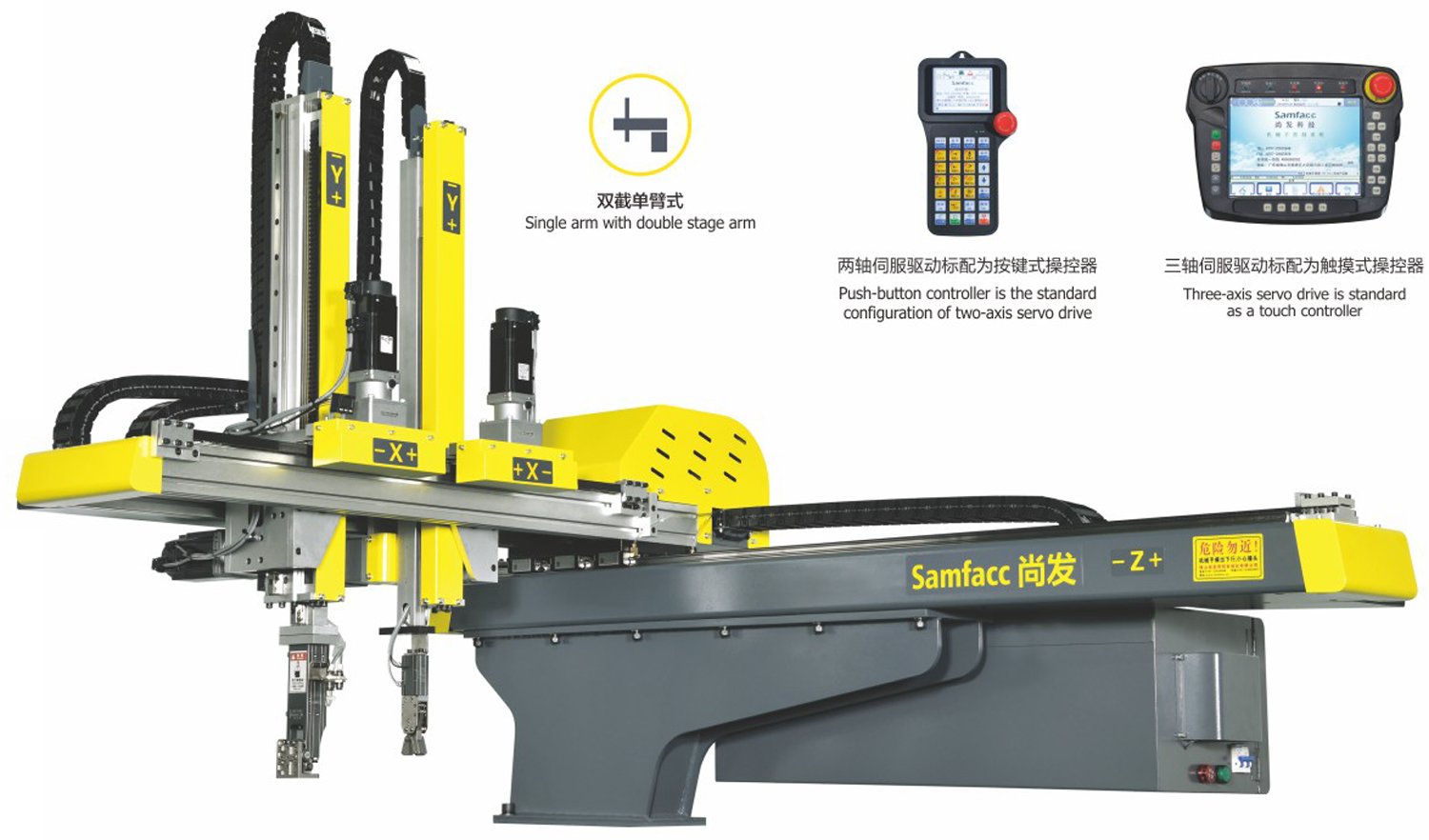

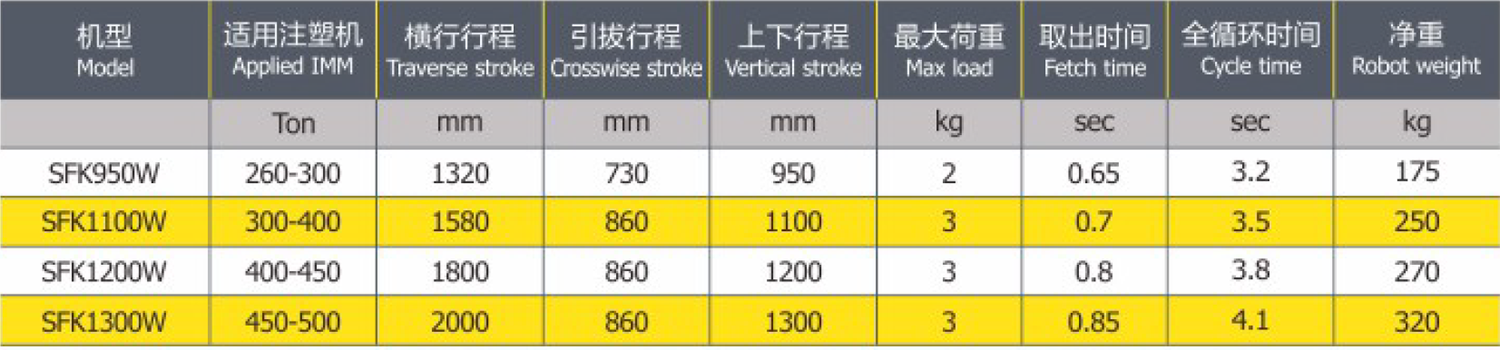

HIGH SPEERD SFK SERIES SFK950W, SFK1100W, SKK1200W, SKF1300W

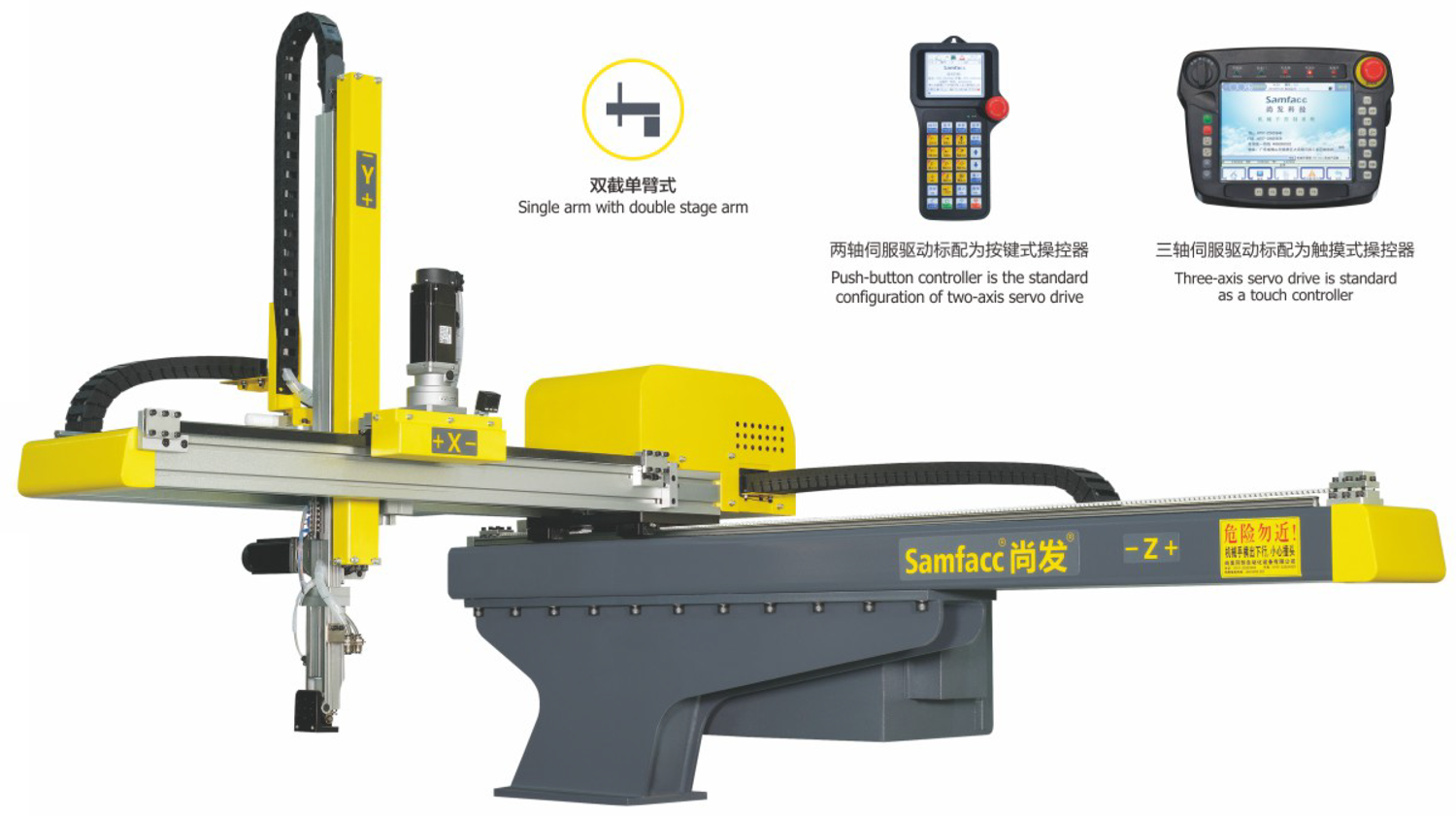

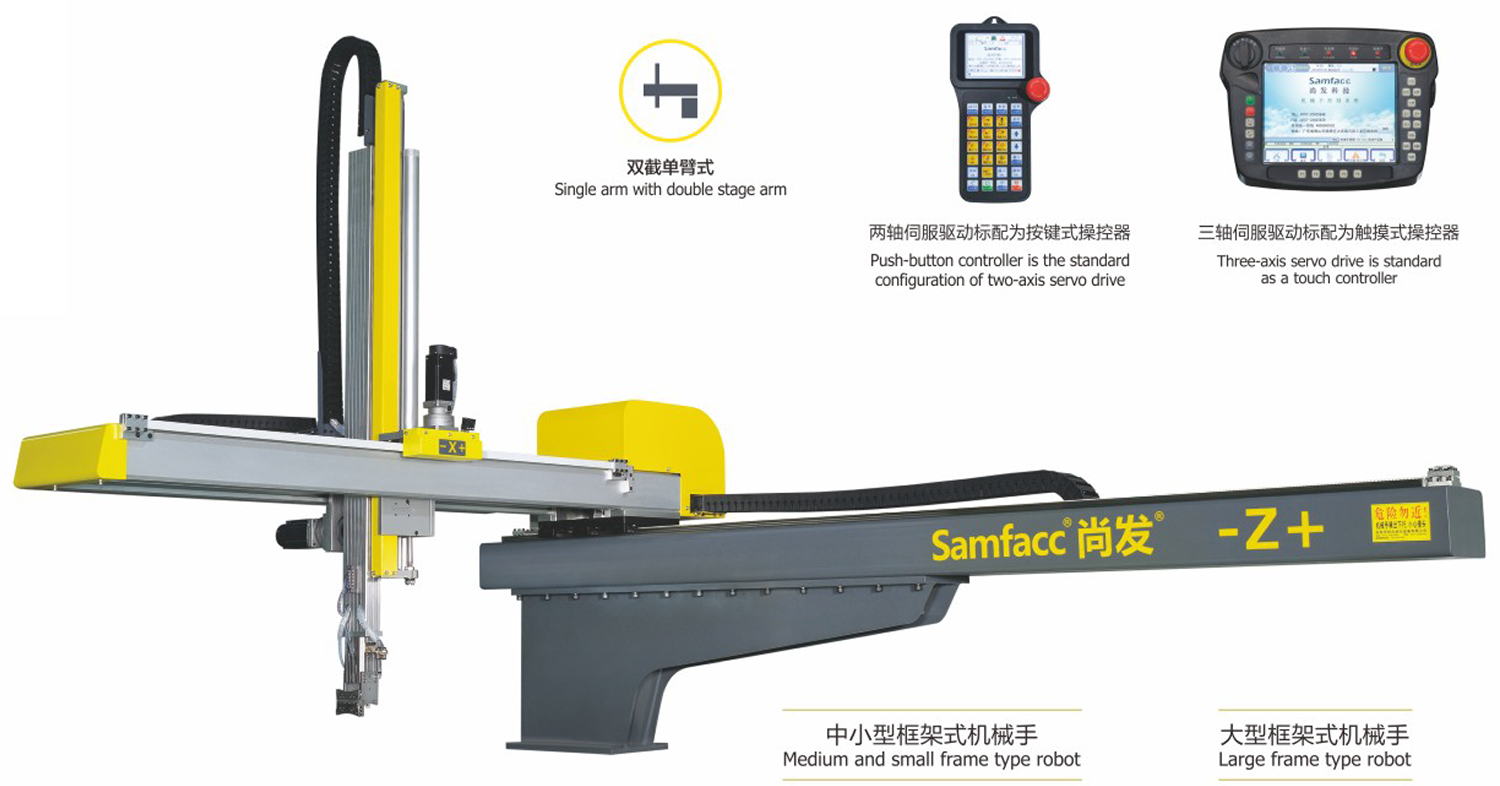

Standard SFK series robot is telescopic type with double stage arm (Optional two axes or three axes servo drive). SFK series robot is high speed type, mainly for some products which production cycle is between 3 to 6 secondszsuch as disposable lunch boxes, knifes and forks thin wall products etc. The fastest cycle time of high speed SFK series robot can reach 2.8s, while the fetch time is 0.6s. As the featured product of Samfacc, high speed SFK series has great advantages in the industry.
FEATURES
100
100 sets of mold memory function
18
18 groups of standard programs
80
80 groups of user education programs
Open teaching mode, users can flexibly teach special action programs to meet the process needs of a variety of specific products.
REMARK
ISingle stage arm
WDouble stage arm
SSingle arm
DDouble arm
S2Two axes are driven by AC servo motors (Vertical for main arm/traverse), crosswise, vertical assistant arm, crosswise cylinder driven.
S3Three axes are driven by AC servo motors (Vertical main arm/Crosswise/traverse), vertical assistant arm/ crosswise cylinder driven.
S5Five axes are driven by AC servo motors (Vertical main arm/Crosswise/traverse), vertical assistant arm/ crosswise /traverse.

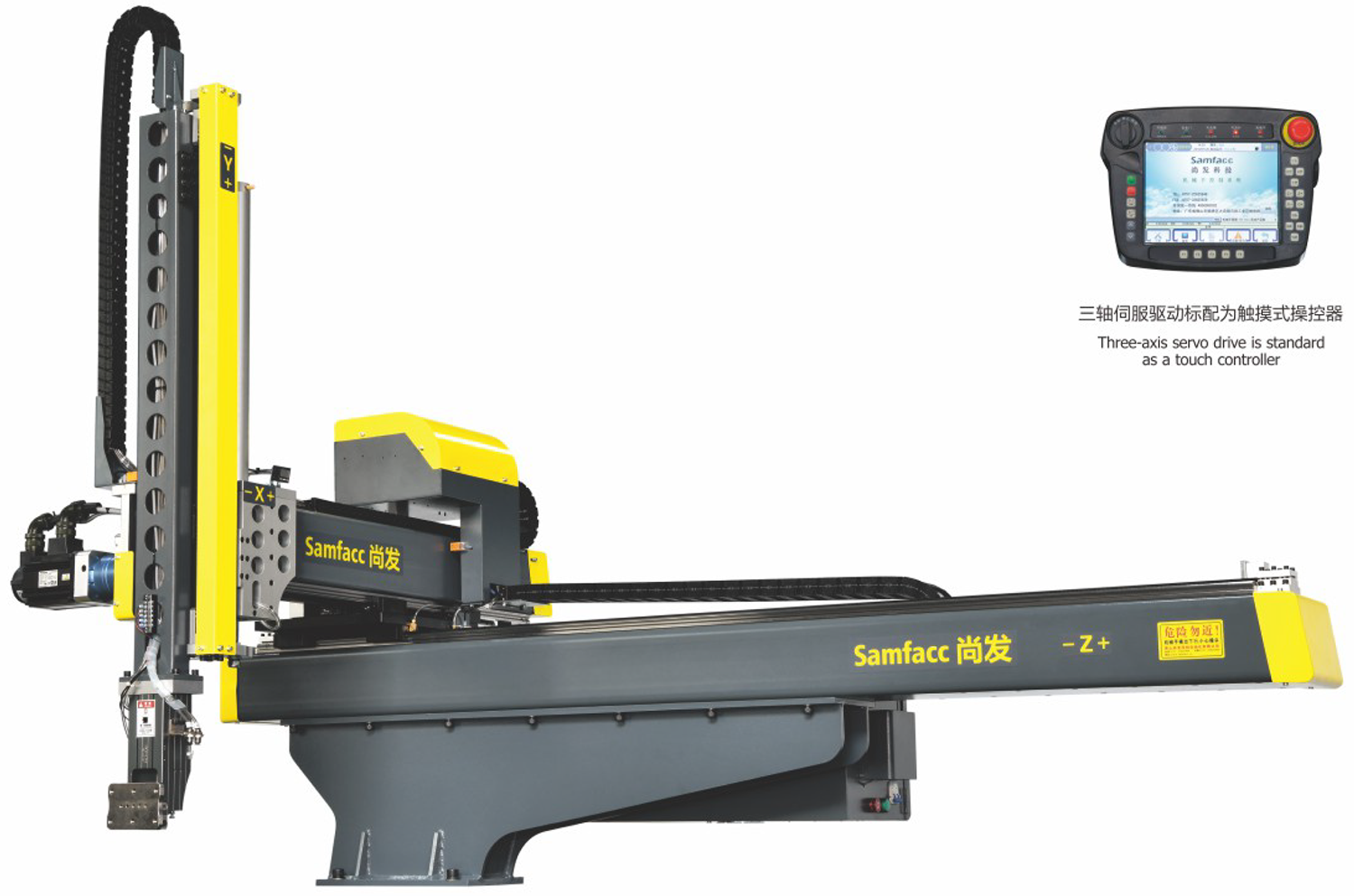

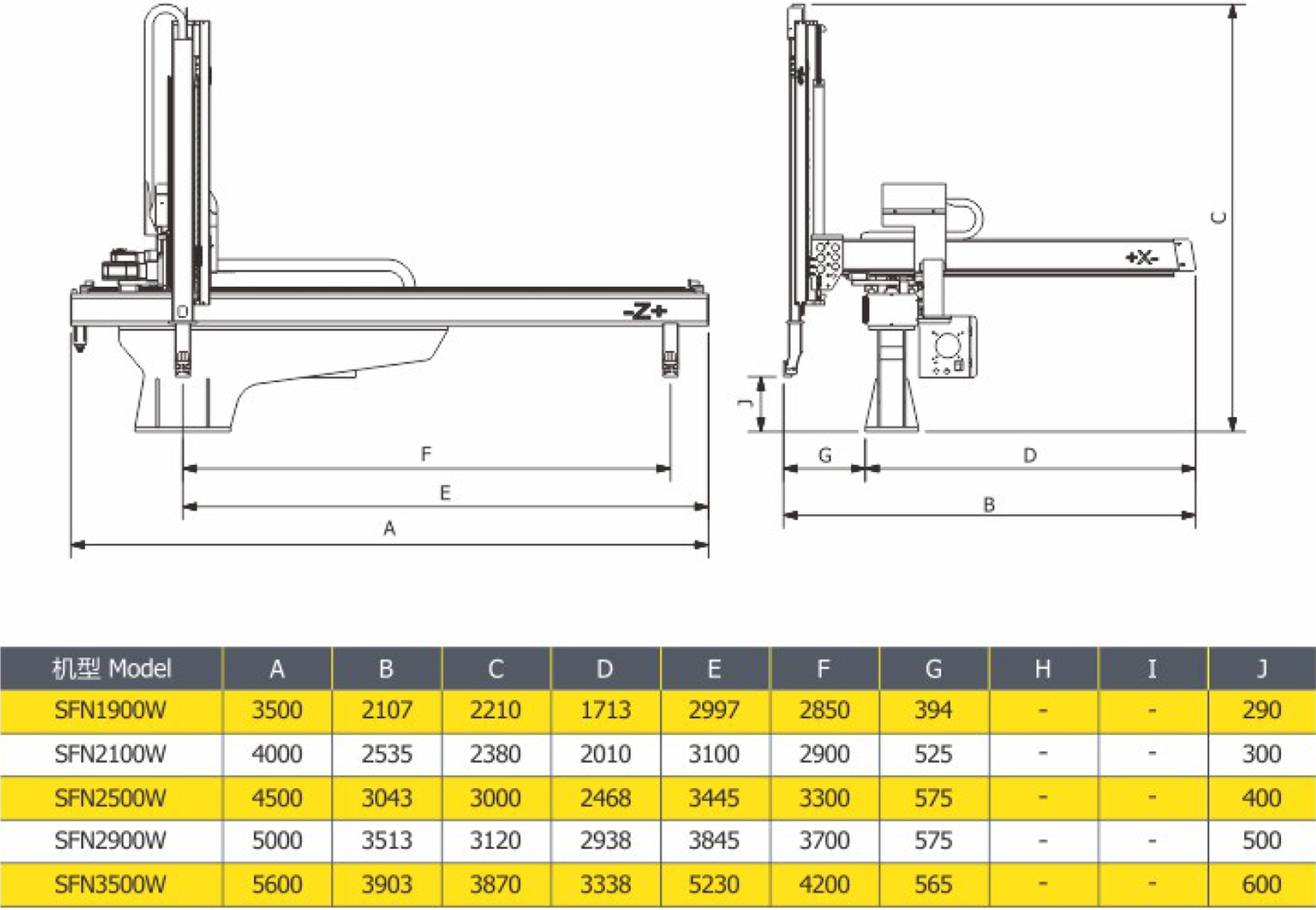

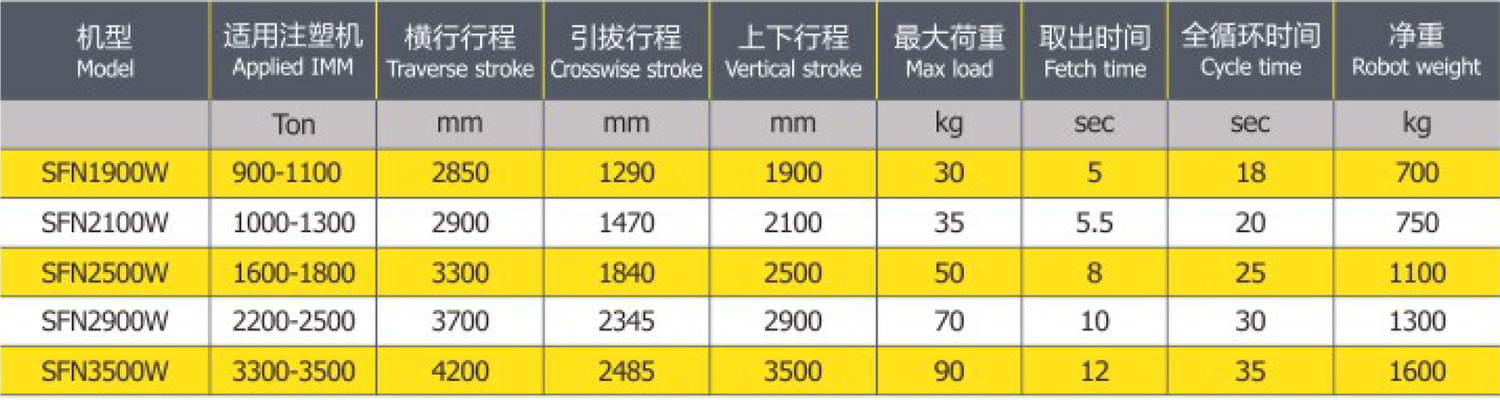

OPEN TYPE ROBOT SFN SERIES SFN1900W, SFN2100W, SFN2500W, SFN29000W, SFN3500W

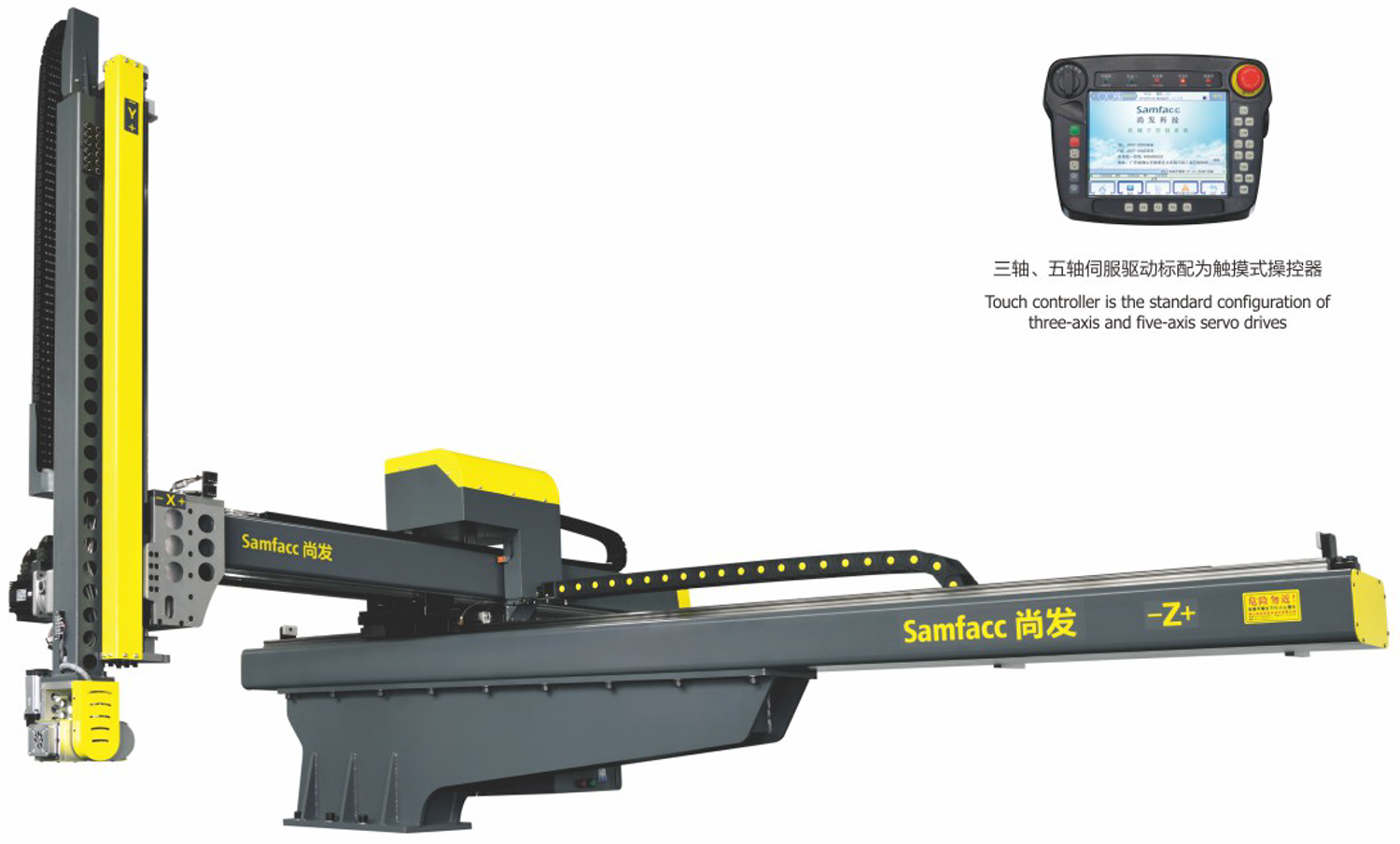

SFN series is open type, and standard with telescopic type and three axes servo system. Servo drive advantage: debugging is convenient, running fast, smooth operation, long using life. Fetching products in mold is more flexible and is not restricted by the size of the products, which is suitable for auto bumper products, large appliances shell, such as washing machine, air conditioner, refrigerators and other products, as well as suitableto fetch out or remove large trash.
FEATURES
100
100 sets of mold memory function
18
18 groups of standard programs
80
80 groups of user education programs
Open teaching mode, users can flexibly teach special action programs to meet the process needs of a variety of specific products.
REMARK
ISingle stage arm
WDouble stage arm
SSingle arm
DDouble arm
S3Three axes are driven by AC servo motors (Vertical main arm/Crosswise/traverse), vertical assistant arm/ crosswise cylinder driven.
S5Five axes are driven by AC servo motors (Vertical main arm/Crosswise/traverse), vertical assistant arm/ crosswise /traverse.

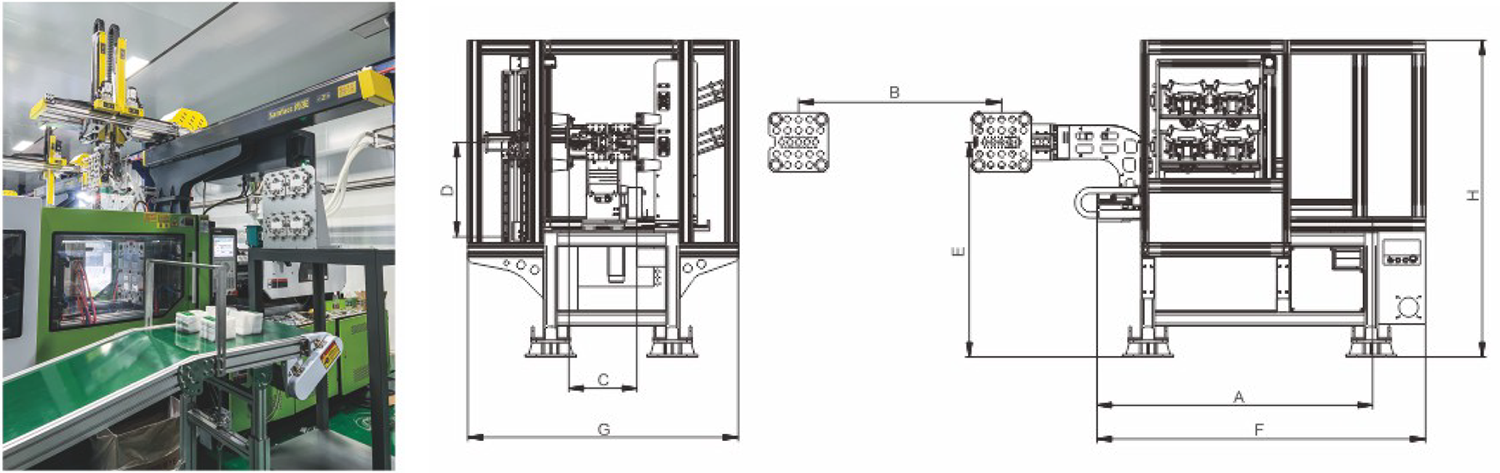

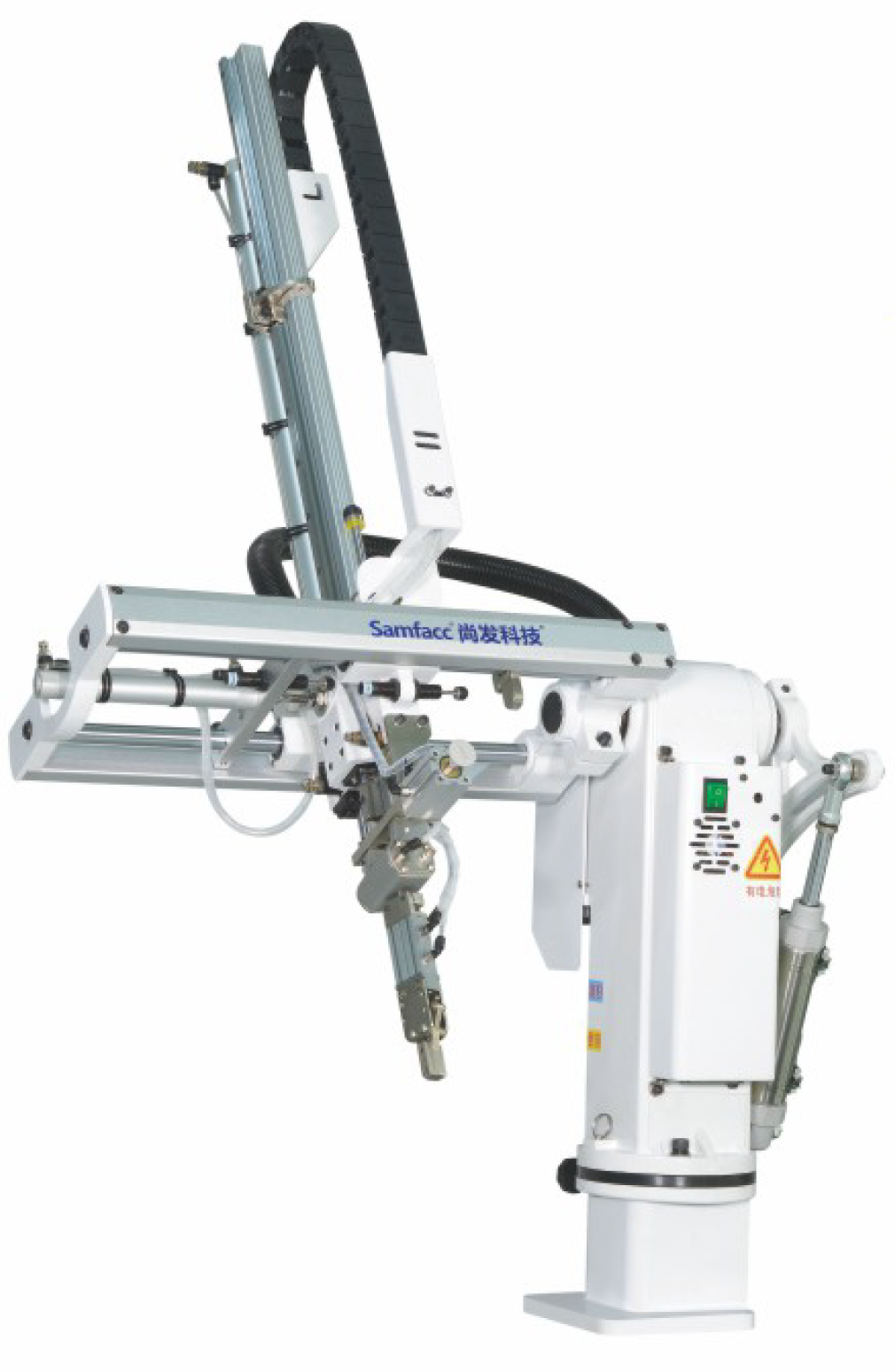

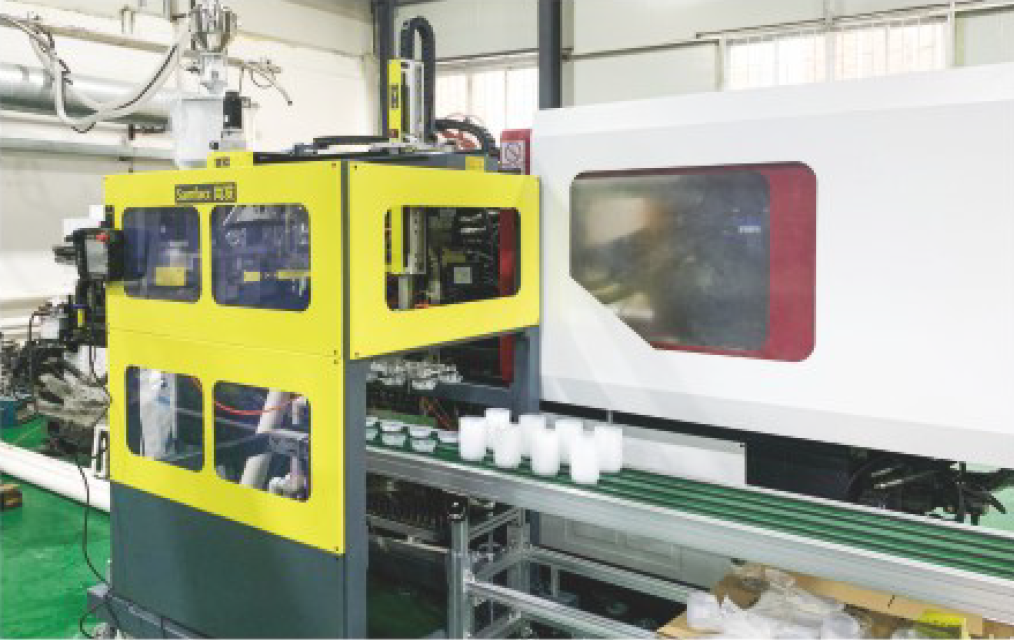

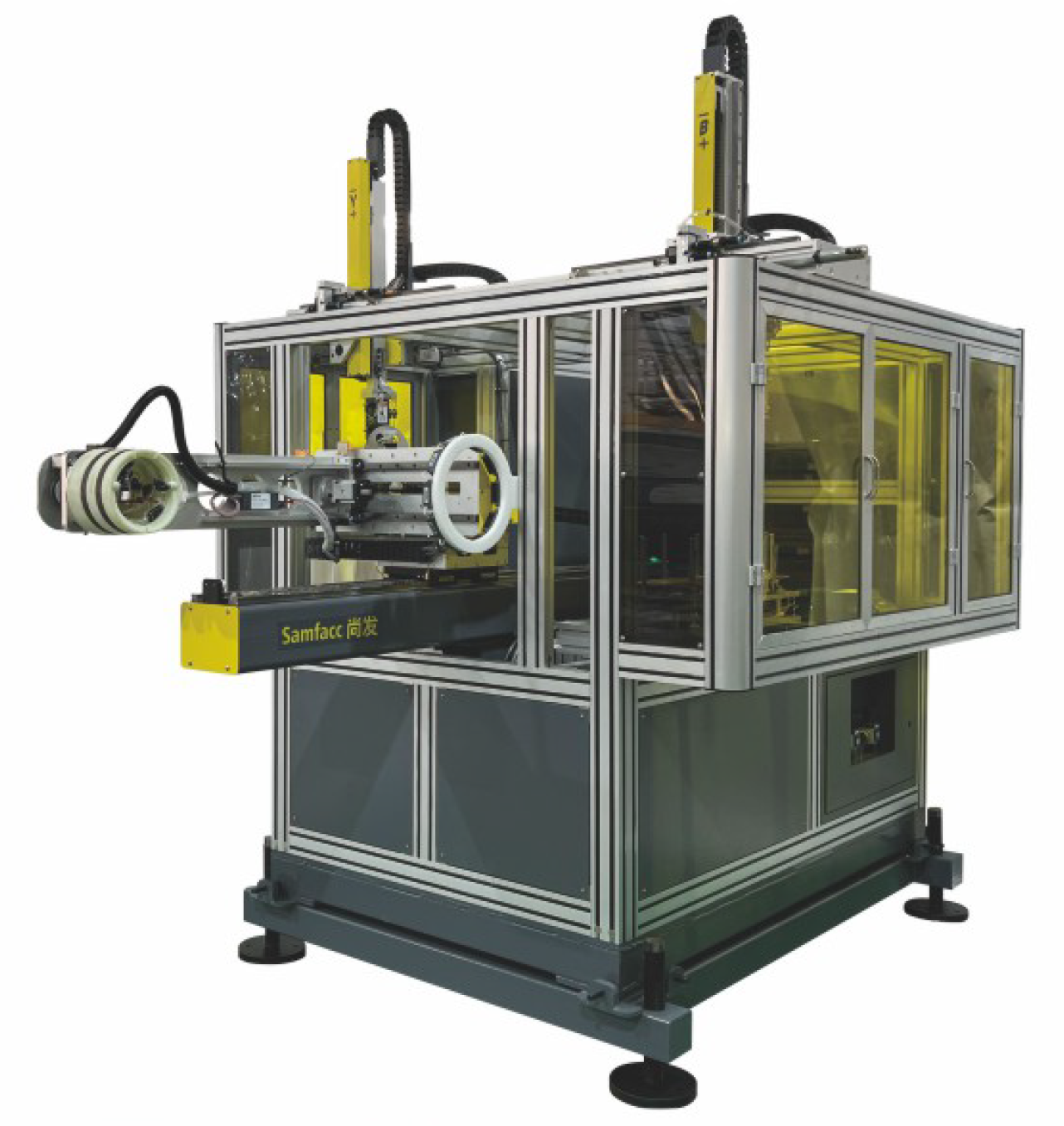

The design method of the side-taking robot will reduce the wear of the machine at high speed, prolong the service life, and effectively solve the problem that the height of the factory is not enough for traditional robots.

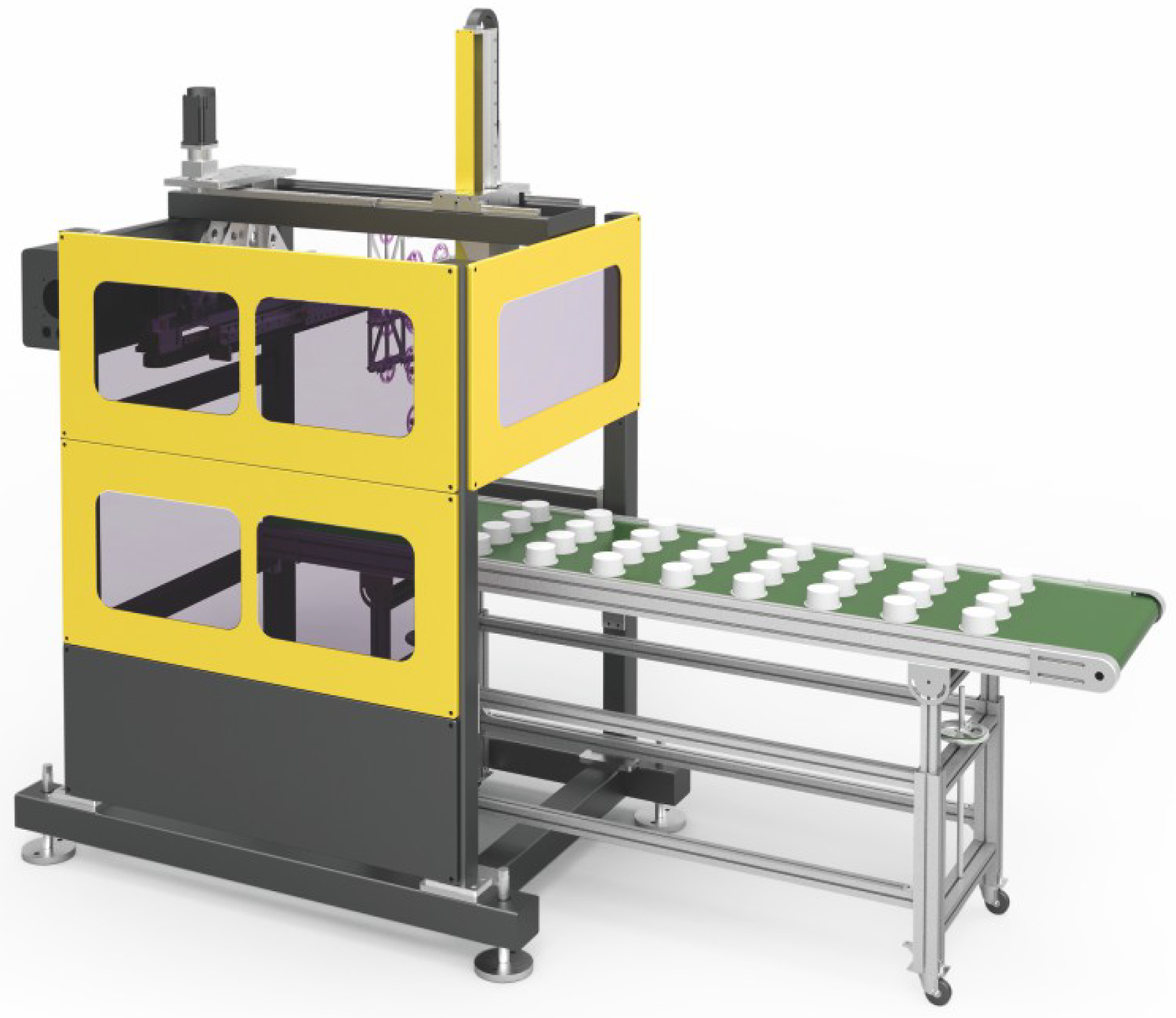

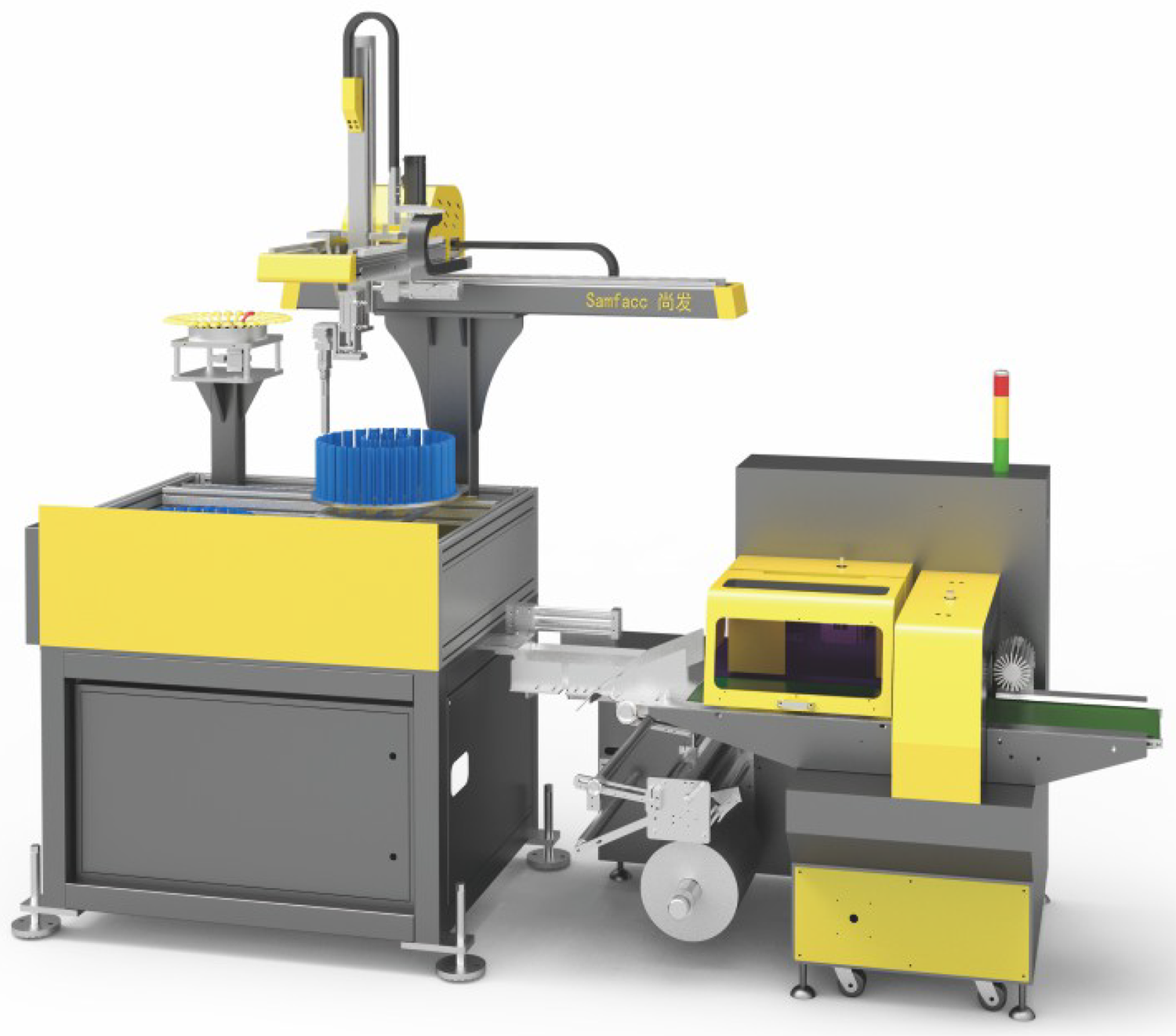

Samfacc automation packaging system can be custom-made for plastic products with different specifications and quantities. There is no manual intervention in the whole process to ensure the clean and efficient production process, which can greatly improve production efficiency and save labor cost.
